After partitioning and chunking, you can have Unstructured generate text-based summaries of detected tables.

This summarization is done by using models offered through these providers:

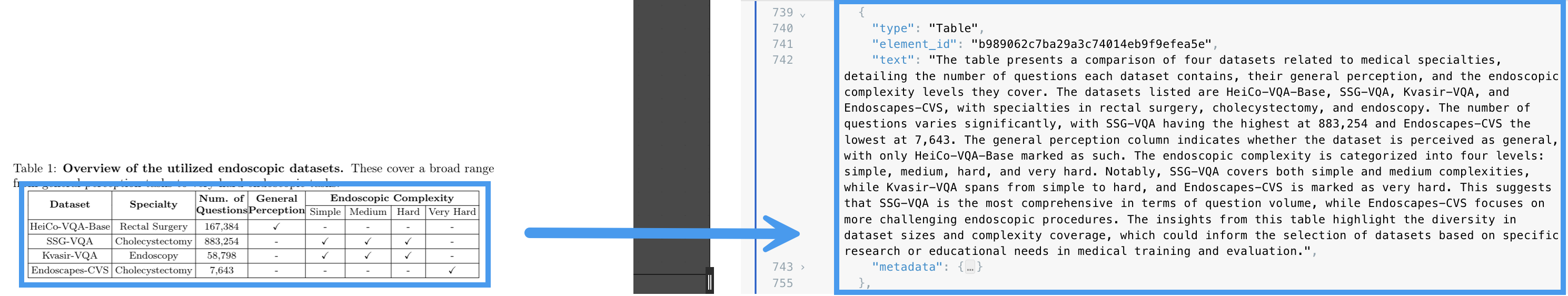

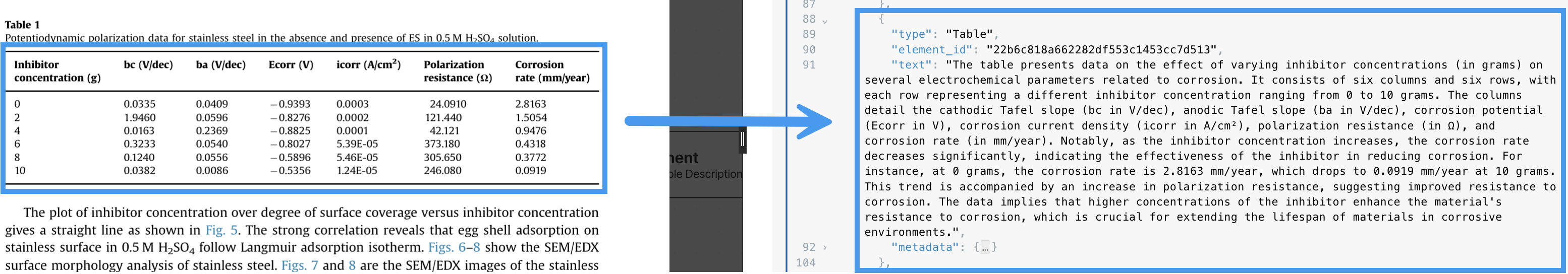

Here is an example of the output of a detected table using GPT-4o. Note specifically the text field that is added. Line breaks have been inserted here for readability. The output will not contain these line breaks.

{
    "type": "Table",
    "element_id": "5713c0e90194ac7f0f2c60dd614bd24d",
    "text": "The table consists of 6 rows and 7 columns. The columns represent
        inhibitor concentration (g), bc (V/dec), ba (V/dec), Ecorr (V), icorr
        (A/cm\u00b2), polarization resistance (\u03a9), and corrosion rate
        (mm/year). As the inhibitor concentration increases, the corrosion
        rate generally decreases, indicating the effectiveness of the
        inhibitor. Notably, the polarization resistance increases with higher
        inhibitor concentrations, peaking at 6 grams before slightly
        decreasing. This suggests that the inhibitor is most effective at
        6 grams, significantly reducing the corrosion rate and increasing
        polarization resistance. The data provides valuable insights into the
        optimal concentration of the inhibitor for corrosion prevention.",
    "metadata": {
        "text_as_html": "<table>...<full results omitted for brevity>...</table>",
        "filetype": "application/pdf",
        "languages": [
            "eng"
        ],
        "page_number": 1,
        "image_base64": "/9j...<full results omitted for brevity>...//Z",
        "image_mime_type": "image/jpeg",
        "filename": "7f239e1d4ef3556cc867a4bd321bbc41.pdf",
        "data_source": {}
    }
}

The generated table’s summary will overwrite any previous contents in the text field. The table’s original content is available in the image_base64 field.

Any embeddings that are produced after these summaries are generated will be based on the new text field’s contents.

​
Generate table descriptions

To generate table descriptions, in the Task drop-down list of an Enrichment node in a workflow, specify the following:

You can change a workflow’s table description settings only through Custom workflow settings.

Table summaries are generated only when the Partitioner node in a workflow is also set to use the High Res partitioning strategy. Learn more.

Select Table Description, and then choose one of the following provider (and model) combinations to use:
